Square and Big Bale Feeders

Order our German catalog here

Square feeders – the suitable feeder for every use Feeding barriers in different version available 2 feeding spaces Outer measure 2,1 x 2,1 m, for all kinds of bales Large and deep feeding base, 2,0 x 2,0 x 0,36 m for high capacity, low feeding losses and feeding of cereals/nuts Height of loading edge is 0,7 m, longer for smaller animals Roof can be dismantled for indoor use, eave height 2,15 m, ridge height 2,65 m

	0909 Square palisade feeder With palisade bars, for horses and long horned cattle. Weight 360 kg

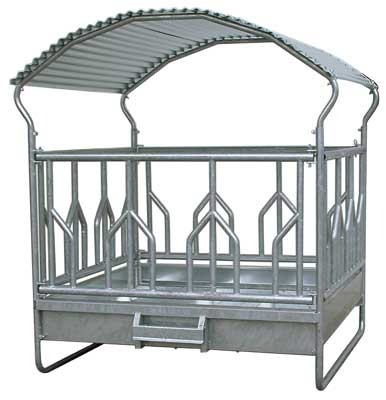

	0908 Square feeder FESTON Square feeder with solid feeding bars especially for cattle with horns. Weight 370 kg

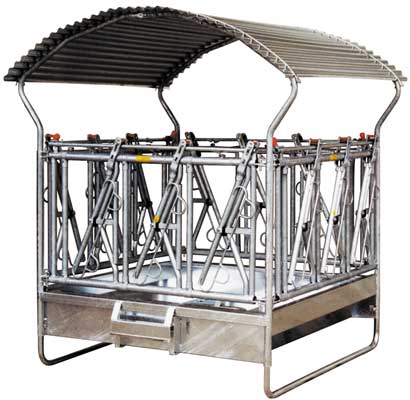

	0907 Square feeder CORNADIS Square feeder with automatic self catching device “Safety”, which enables catching and holding outdoor cattle for a short time, due to its sturdiness. “Safety”-feeding device with emergency exit and patented return system of the catching bar for the correct motion. Weight 480 kg

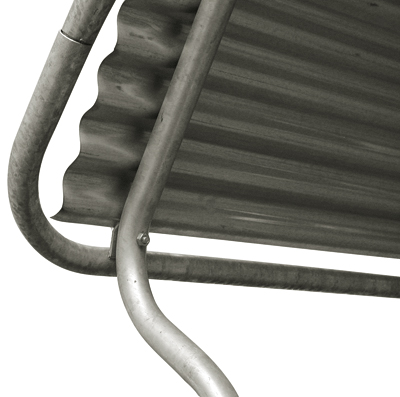

	DKSB Roof edge protecting frame From galvanised steel pipe for all TEXAS TRADING square feeders.

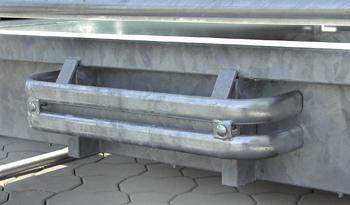

	DRPS Protecting frame Protects the animals against injury at the 3 point linkage attachment. For square and round bale feeders.

Big bale feeder – 14 feeding spaces and feeding base 2 x 3 m for bigger herds 14 feeding spaces Outer measure 2,9 x 2,1 m, for 1 – 2 big square bales on top of each other or two round bales beside each other Large and deep feeding base 2,8 x 2,0 x 0,36 m, for high capacity, low feeding losses and feeding of cereals/nuts Feeding barrier in different versions available Height of loading edge is 0,7 m, lower for smaller animals Roof can be dismantled for indoor use, eave height 2,15 m, ridge height 2,65 m Lenghtwise the sides are equipped with gutters and a third roof support

	0942 Big bale palisade feeder Feeder with solid feeding barriers especially for cattle with horns. Weight 490 kg

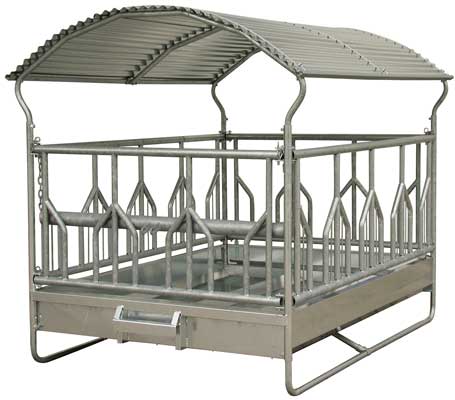

	0940 Big bale feeder FESTON Big bale feeder with solid feeding barriers especially for cattle with horns. Weight 490 kg

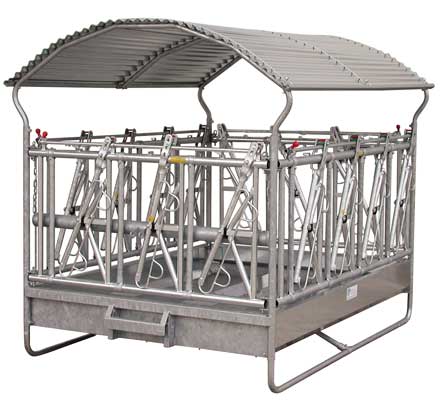

	0945 Big bale feeder CORNADIS Feeder with self catching feeding barriers “Safety”, also for catching and short term fixation of outdoor cattle is possible, due to its weight. Safety-feeding barriers with emergency exit and the patented return of the catching bar for correct motion. Weight 625 kg

	KS1 Roof edge protection Rubber roof edge protection for roof metal sheets. For a square feeder are approx. 9 m, for a big bale fedder approx. 12 m needed.

	ACKS Short draw bar Standard draw bar, category 2. Can turn between the lower linkage arms. Needed for transport of silage feeders and calf creep feeders. Length 90 cm, weight 11 kg

Feeder for individual demands ABRIBAL MOBIL – The economical feeder for cattle and game Narrow spacing of the feeding bars Large feeding base Low feeding losses Bales lie on top of the bars Large roof, removable for indoor use 3 point linkage The side across the 3 point linkage can be opened for filling Feeding barrier can be attached to the feeding base Galvanised version Warning: Not suitable for horses!

	0913 ABRIBAL Feeding base 1,5 m x 2 m Weight 301 kg

	0915 Bi-Faces Feeding base 2 m x 2 m Weight 380 kg
