Fencing gates and accessories |
|
 |
| Extendable fencing gate |
| |
4300 |
4301 |
4302 |
| adjustable from |
3-4 m |
4-5 m |
5-6 m |
| Gate height |
115 cm |
115 cm |
115 cm |
| Vertical rungs |
2 |
3 |
3 |
| Rung distance |
24 cm |
24 cm |
24 cm |
| Weight |
56 kg |
66 kg |
77 kg |
|
|
 |
| Small extendable fencing gate |
| |
PG0406 |
PG0608 |
PG0810 |
| Inner distance |
125-185 cm |
185-245 cm |
240-300 cm |
| Gate height |
122 cm |
122 cm |
122 cm |
| Total height |
130 cm |
130 cm |
130 cm |
| Vertical rungs |
1 |
1 |
2 |
| Rung distance |
24 cm |
24 cm |
24 cm |
| Lock |
PGV |
PGV |
Chain |
| Weight |
25 kg |
30 kg |
35 kg |
|
|
 |
| Fencing Gate |
| |
PG04 |
PG08 |
PG10 |
| Fitting length |
120 cm |
240 cm |
300 cm |
| Gate height |
122 cm |
122 cm |
122 cm |
| Total height |
130 cm |
130 cm |
130 cm |
| Vertical rungs |
0 |
1 |
1 |
| Rung distance |
24 cm |
24 cm |
24 cm |
| Weight |
16 kg |
28 kg |
33 kg |
|
|
 |
| Fencing Gate |
| |
PG12 |
PG14 |
PG16 |
| Fitting length |
360 cm |
420 cm |
420 cm |
| Gate height |
122 cm |
122 cm |
122 cm |
| Total height |
130 cm |
130 cm |
130 cm |
| Vertical rungs |
2 |
2 |
3 |
| Rung distance |
24 cm |
24 cm |
24 cm |
| Weight |
39 kg |
45 kg |
45 kg |
|
|
 |
BG04
Fencing gate with frame
1,2 m wide, complete with two chains. For installation between panels or walls.
Frame 128 x 260 cm, gate 105 x 205 cm, weight 28 kg |
|
 |
ZBG04
Fencing gate with frame
Fast installation, always fitting. Especially suitable to lead single animals through. Fast and easy access with or without wheel barrow. Gate with post, hinge and lock completely mounted and hot dipped galvanised.
Frame 128 x 260 cm, gate 105 x 205 cm
Length ground bars 50 cm, weight 31 kg |
|
 |
2102
Screw on fittings for installing doors, dividers, cubicles etc. onto a wall or timber beam. Delivery includes bolt which is tied to a short chain. Mounting screws are not included. Distance from wall to centre bolt is 35 mm. Hole Ø 13 mm, hole distance 100 mm. Weight 2 kg. |
|
 |
2104
Bolt holder for fencing gates 4300 to 4302.
Weight 2 kg
|
|
 |

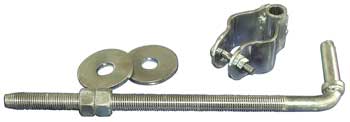

BT1
Threading spindle BT |
|
 |

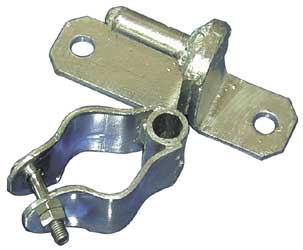

BT2
Wall Fitting |
|
 |
PGP
Special post to mount onto the “PG” fencing gates. Bushings are welded on to connect the spindles and give high stability. Delivery with caps (threaded spindles come with the PG´s).
Length 200 cm, weight 11 kg |
|
 |

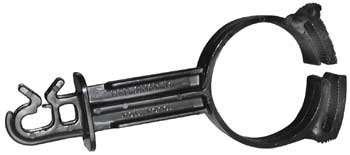

ISS7
Special insulator
Installation onto our fencing gates. For wire, cord, flex or 10-mm-tape. Only available in black. |
|
 |
PGFIX
Gate lock“PG” gates can be locked in any position. Ideal for double gates in combination with PGVD. Simply screw onto the “PG”. |
|
 |

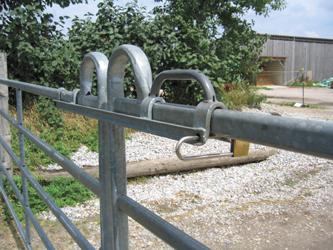

PGVD
Flip Lock for double gates. Lockable with padlock. Delivery excludes padlock. |
|
 |
RAD
Support wheel for “PG” fencing gates. Simply put onto the vertical oval profile of the gate. Releases the post. Recommended for gates wider than 4,2 m. Height adjustable. |
|
 |
PGV
Lock Known from our gate series “WT”. Falling lock for the single hand operation.Delivery completed with screwing on counterpart for the post. In combination with PG04 specially suitable for leading single animals out of the enclosure. Lockable with padlock. |
|
 |
PGV1
Self locking lock with single hand operation for gates opening in only one direction. Just push it in the direction to the wall for closing! Delivery completed with screwing on counterpart. Lockable with padlock. |
|
 |
PGV2
Special lock for gates opening in either direction, which can be opened and closed with one hand. Lockable with padlock. Delivery completed with screw on counterpart. |
|
