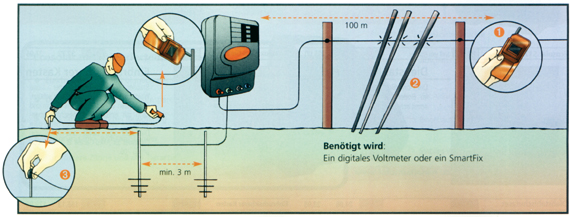

Test the earthing system of your fencer as shown below:
- Measure if there is at least 3000 V voltage on the fence at a minimum distance of 100 m from the earthing system.
- Cause a short circuit, that you will have less than 1000 Volt at the same spot on the fence. It can be done, by a T-post touching the fence.
- Measure the voltage of the earthing system. If there is less than 300 Volt, additional earthing bars have to be installed.
Required is a digital voltmeter or Smartfix
|
|
 |
Gallagher I-series
GI1200
The new M1200i is a powerful energizer with 11 Joule stored energy, suitable for fences up to 32km. The external display communicates with the fence and shows the status of the energizer, the fence and the earthing. |
|
 |
Gallagher I-series
GI1800
The new M1800i is a very powerful energizer with 18 Joule stored energy, suitable for fences up to 43km. The external display communicates with the fence. The system is expandable with maximal 6 fence monitors and remote control.
|
|
 |
Gallagher I-series
GI2800
The new M2800i is an extremely powerful energizer with 21 Joule stored energy, suitable for fences up to 53km. The external display communicates with the fence. The system includes 1 fence monitor and a remote control. Expandable with maximal 5 additional fence monitors. |
|
 |

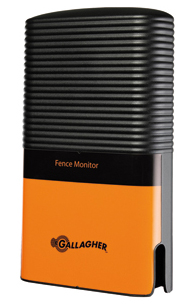

Gallagher Fence-Monitor
GIM
Specifies voltage and current on location; going back real-time to the device. Device compares the values with set minimums and translates this to a signal towards the external display or SMS/module. |
|
 |
Gallagher Remote-Controller
GIF
Enables you to search for the fault on the location with power loss given by the transponder. Enables you to turn the unit on/off from anywhere along the fence line.
|
|
 |
Gallagher Mains Energizer
GPP50
New Easy to operate mains equipment for short runs of fencing, specially suited to domestic pets. Very easy to install using the wall clip supplied. With integrated lightning protection. |
|
 |

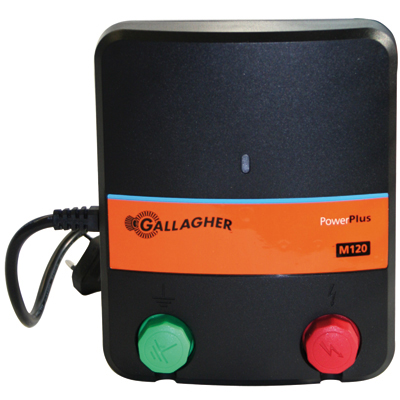

Gallagher Mains Energizer
GPP120
New easy to operate mains equipment for short runs of fencing up to 1 ha. Very easy to install using the wall clip supplied. With integrated lightning protection. |
|
 |
GM300S
Gallagher Energizer
Strong conventional, low impedance, high voltage energizer with 3.2 Joules stored energy. Supplied with the latest digital technology providing trouble free usage for years. Suitable for multiwire fences up to 17 km. |
|
 |
GM500
Gallagher Energizer
Strong conventional, low impedance, high voltage energizer with 5.2 Joules stored energy. Supplied with the latest digital technology providing trouble free usage for years. Suitable for long multiwire fences up to 23 km. |
|
 |
GM700
Gallagher Energizer
Strongest conventional, low impedance, high voltage energizer with 6.5 Joules stored energy. Supplied with the latest digital technology providing trouble free usage for years. The LCD display provides accurate information about the fence voltage and voltage on the earting. Suitable for long multiwire fences up to 26 km. |
|
 |
BAT75
9-V-Alkaline high performance battery 75 Ah
This battery provides a continuous high operational security over the whole battery life. 75 Ah.
Length 165 mm, width 110 mm, height 115 mm |
|
 |
G120AH
Gallagher 9-V-Alkaline battery
Eco-friendly fencing battery with constant voltage for optimised fencer performance. C. 30 % higher performance than ordinary batteries.
Capacity 120Ah. Length 160 mm, width 115 mm, height 110 mm |
|
 |
G175AH
Gallagher 9-V-Alkaline battery
Eco-friendly fencing battery with constant voltage for optimised fencer performance. C. 30 % higher performance than ordinary batteries.
Capacity 175Ah. Length 190 mm, width 125 mm, height 160 mm |
|
 |
GKASET
Gallagher cable kit
Fence and earthing cable kit. Coloured insulated clamps with stainless steel contacts for all battery and accumulator fencer. |
|
 |
KAST
Theft-proof box
Sturdy metal box which protects the fencer against weather. The box is under electricity and can be locked with a padlock. The box prevents theft of fencer and accumulator. |
|
