Gate handles and kits
What has to be taken into account with electric fence gates?
Basically you have to be aware that: fence gates are often a weak spot in the fence. The fact that animals pushing each other on the pasture exit in different situations, require that fence gates needs extra security from breaking out. Normally the electricity is carried on with a underground cable underneath a gate, which needs a bit of digging. Both facts result in keeping pasture entrances as low as possible.
The safest and most comfortable gate solutions are permanent, hot dipped galvanised metal gates with suitable locking systems. There are single or double gate solutions in different widths.
Besides the permanent gates there are also non permanent fencing gates available. They consist of insulated gate handles with sprung hang-in hooks, conductors, mounting parts onto the fence and – at wind up gates – a winding up unit for the conductor material. For building a gate there are as many gate sets needed as many conductor lines the fence has. At winding up gates the conductors are winded up as the gate is opened. That brings various advantages: the conductor are not getting dirty, no short circuits can occur and – as an important security factor – stumbling traps for human and animal are avoided.
Similar advantages bring gate springs, which contract when opening the gate. But gate springs are only suitable for cattle.
|
|
|
ETS
E-line-gate Set 3 – 6 m length
Very practical and manageable electric fencing gate,
with electric cord as a conductor. For fence openings
of 6 or 9 m. No mane or tail hair get stuck in it.
Hook is made from stainless steel. |
|
|
ETS2
E-line-gate Set 4,5 – 9 m length
Very practical and manageable electric fencing gate,
with electric cord as a conductor. For fence openings
of 6 or 9 m. No mane or tail hair get stuck in it.
Hook is made from stainless steel. |
|
|
FG2
Tape wind up gate
For pasture inlets up to 6 m. The tape is winded up when the gate is opened. No short circuit on the fence.
No down-hanging, dirty tapes. |
|
|
FG3
Cord wind up gate
Same as FG2, but with electro cord. |
|
|
|

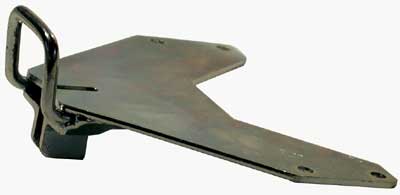

FGTP
Mounting platform
Platform for mounting the cord wind up gate FG3 or tape wind up gate FG2 to the T-post. Hang in platform on the T-post, screw on cord wind up gate. |
|
|

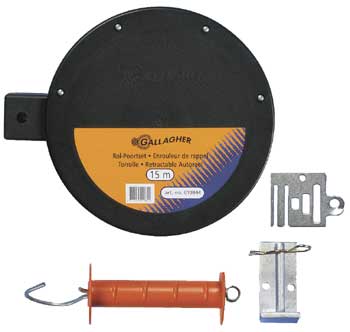

GTR
Gallagher gate set
Large gate handle set for trouble-free opening of the fence without ground contact. The 40 mm wide gate tape winds up automatically at opening. Pulls out up to 15 m. |
|
|
GTSSO
Gate handle for cord, orange,
Handy door handle, extra galvanized steel spring and particularly strong insulation. |
|
|
GTSBO
Gate handle for tape, orange,
Handy door handle, extra galvanized steel spring and particularly strong insulation. |
|
|
TGHD
Extreme sturdy gate handle with pressure spring. Lockable due to hole for padlock, yellow |
|
|
TGHDS
Extreme sturdy gate handle with pressure spring. Lockable due to hole for padlock, black |
|
|
TG2E
Hook with robust tension spring and stop. All metal parts are stainless steel because of its excellent corrosive protection. |
|
|
TGS
Large dimensioned gate handle with hook and sturdy pressure spring mechanism. |
|
|

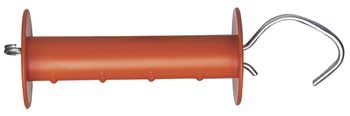

GTGO
Gate handle red, with tension spring and large hand protection.Very sturdy, galvanised |
|
|

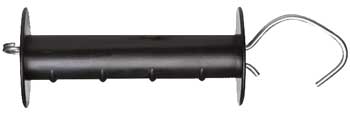

GTGS
Gate handle black, with tension spring and large hand protection.Very sturdy, galvanised |
|
|

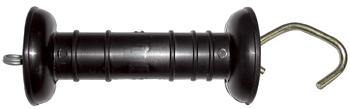

G175O
Gate handle with hook and tension spring. |
|
|

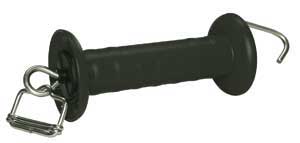

TG2EB
Gate handle with hook, tape connector and tension spring with stop. All metal parts from stainless steel. |
|
|
TG2SB
Gate handle with hook, tape connector and tension spring with stop. Metal parts are galvanised. |
