    Waage FX1-1 mit 100 cm StahlwiegebalkenWeighing system FX1 – the right scale for every animal Owner for exact weighing with a press of a button

    Practical steel weighing beams
    +/- 1 % exact, that’s precision for livestock weighing!
    Automatic tare between each weighing to balance the excrements.
    The loading capacity of 2 tonne is nearly always sufficient. Live animals constantly move, kick and push. Therefore the weighing beams can buffer side loads very well. All weighing beams, also the starting model FX1, have integrated rubber buffers to compensate pushes.


    Display

    Display 4 digits 24 mm high LCD display
    Measurements 200 x 175 x 50 mm
    Weight 0,65 kg
    Supply Operation is on a 12-V-accumulator with low voltage warning and low discharge protection

    Steel weighing beams


      Type WB6S Type WB1S
    Length 606 mm 1006 mm
    Measurements bore distance bore distance
    A 570 mm 970 mm
    B 546 mm 946 mm
    Width 152 mm 152 mm
    Height 88 mm 88 mm
    Weight 2 x 10 kg 2 x 15 kg
    Version steel with powder coated surface and hot dipped galvanised bottom part, 6 m connection cable

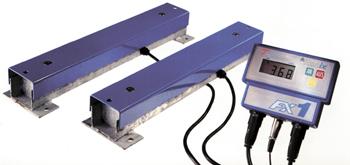

    FX1-6 Wiegesystem mit 60 cm Stahlwiegebalken FX1-6
    Display unit FX1 with holding frame
    Battery connection cable
    Set of Steel weighing beams 60 cm

    FX1-6 Wiegesystem mit 60 cm Stahlwiegebalken FX1-1
    Display unit FX1 with holding frame
    Battery connection cable
    Set of Steel weighing beams 100 cm
