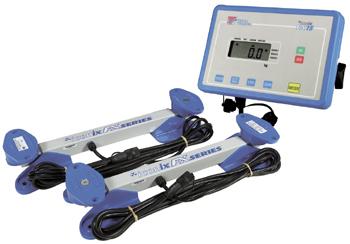

Weighing system FX15 with statistic function – particularly suitable for weighing groups of animal.
Either a pen of bulls or a litter of piglets, after the individual weighing, the number of total weighing, total weight and average weight, as well as maximum and minimum weight
are immediately available.
Integrated accumulator as additional equipment
The available lead-gel-accumulator offers 10 –12 hours of independent weighing. Delivery includes charger.
Interface for computer
Control of the FX15 is possible with a computer and allows immediate transfer of the results.
Precise weighing beam
The FX15 is delivered with the robust, but light 2 tonne aluminium weighing bar. The weighing cells are in a waterproof capsule. Precise weights are possible through the perfect power flow, careful standing area and leg construction with integrated rubber buffer. |
|
Technical data |
Display
Display |
4 digits 24 mm high LCD display |
Measurements |
280 x 186 x 90 mm (without handle) |
Weight |
1,7 kg, with accumulator 2,4 kg (including handle) |
Supply |
operation with 12 V (e.g. battery), low voltage warning,
protected against low discharge below 10 V battery voltage |
Option |
integrated 12-V-accumulator with charger |
|
|
Aluminium Weighing Beams
|
Type WB6A |
Type WB1A |
Length |
606 mm |
1006 mm |
Measurements |
bore distance |
bore distance |
A |
512 mm |
912 mm |
B |
546 mm |
946 mm |
Width |
180 mm |
180 mm |
Height |
100 mm |
100 mm |
Weight |
2 x 5,5 kg |
2 x 7,0 kg |
Version |
powder coated aluminium, water-proof, robust leg and standing are construction with rubber buffer, 6 m connection cable with water-proof plugs and protection cap. |
|
|
|
FX15-6
Weighing system FX15
with 60 cm weighing beam
|
|
|
FX15-1
Weighing system FX15
with 100 cm weighing beam |
|
|
FX15B6
Weighing system FX15 with integrated accumulator
Integrated 12-Volt lead gelled accumulator and external charger
for 230-V-mains.
Set of Weighing beams 60 cm |
|
|
FX15B1
Weighing system FX15 with integrated accumulator
Integrated 12-Volt lead gelled accumulator and external charger
for 230-V-mains.
Set of Weighing beams 100 cm |
|
|
